Number of Channels:8
Input Type:Digital AC
Input Voltage Range:10 – 30 VAC, 10 – 30 VDC
Off-State Input Voltage:3 VAC/VDC
Nominal Current:8 MA at 24 VAC/VDC
Off-State Current:1 MA AC/DC
Current Rating:Backplane: 85 MA
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Shock Resistance:30 G

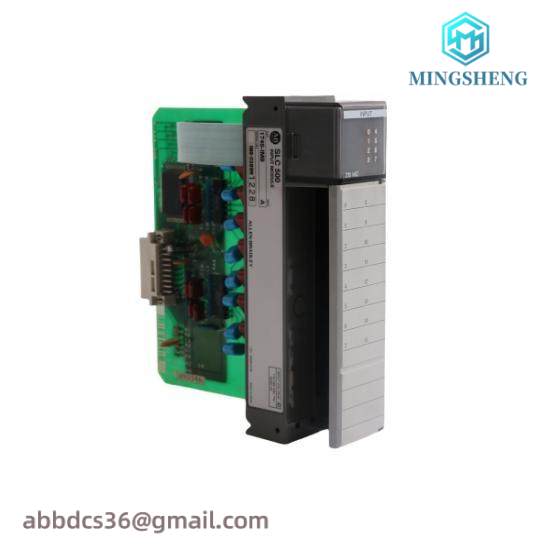

Integrating seamlessly into the Allen Bradley SLC 500 system, the 1746-IM8 Input Module offers an efficient and reliable solution for industrial automation tasks, specifically designed for handling digital AC inputs from a wide range of sources.
With its robust design and high isolation levels, this module ensures uninterrupted operation even under challenging environmental conditions, guaranteeing optimal performance throughout the year.
Equipped with 8 channels, the module allows for the simultaneous acquisition of signals from multiple sensors or devices, making it ideal for complex industrial setups requiring precise and fast data processing.
Its ability to handle voltages from 10VAC to 30VDC (sink) with an off-state voltage of just 3V ensures compatibility with a variety of industrial standards, enhancing its versatility in different application scenarios.
The 1746-IM8 Input Module is not only designed for efficiency and reliability but also for ease of integration and maintenance, offering quick and straightforward installation procedures and comprehensive documentation for seamless deployment in existing systems.
