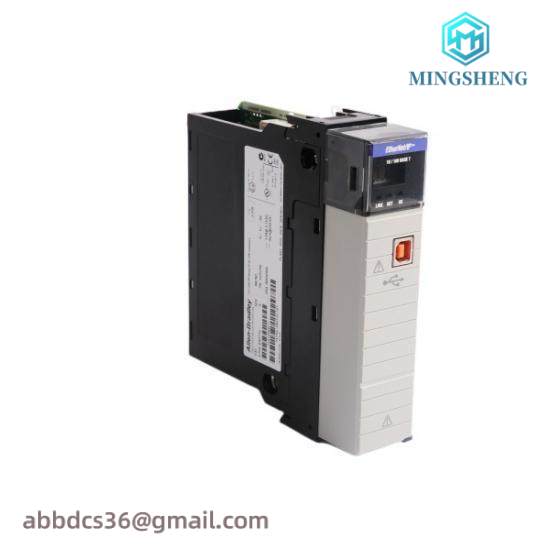

Allen Bradley 1756-EN2TSC CLX EtherNet/IP Module for Industrial Automation

Model Type:High Capacity IP Module

Manufacturer(s):Allen Bradley

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not Applicable

    The Allen Bradley 1756-EN2TSC CLX EtherNet/IP Module is a high-capacity IP communication solution specifically engineered for industrial automation applications. It enables efficient data exchange between ControlLogix systems and Ethernet/IP networks, providing enhanced performance and reliability.

    This module is designed for direct mounting on the chassis, ensuring compact installation and easy integration within existing industrial control systems. Its open type enclosure allows for optimal heat dissipation and maintenance accessibility.

    With support for 10/100 Mbps communication speeds and Ethernet/IP Bridge protocol, the 1756-EN2TSC ensures robust connectivity and compatibility with a wide range of Ethernet/IP devices, including PLCs, HMIs, and other field devices.

    Equipped with 3 MA power supply at 24 VDC, this module provides stable power delivery to connected devices, ensuring reliable operation under various environmental conditions. It is rated for continuous operation in temperatures ranging from 0 to 60°C, making it suitable for a broad spectrum of industrial environments.

    In addition to its technical specifications, the Allen Bradley 1756-EN2TSC is designed with a focus on durability and safety. Its 30 G shock rating and 2 G vibration tolerance ensure the module can withstand harsh industrial conditions without compromising functionality.

    The 1756-EN2TSC CLX EtherNet/IP Module is an essential component for upgrading or expanding industrial networks, offering improved efficiency and connectivity. Its compatibility with Allen Bradley’s ControlLogix family of products ensures seamless integration, allowing for a cohesive and powerful automation solution.
