Control Power Nominal:20 VA
Control Power Maximum:65 VA
Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Dimensions:approx. 12 in H x 5 in W x 8 in L
Ground Current Input Frequency:20 to 100 Hz
Insulation Class:I
Phase Current Input Conversion:True RMS, 1.04 ms/sample
Weight:approx. 4.5 kg

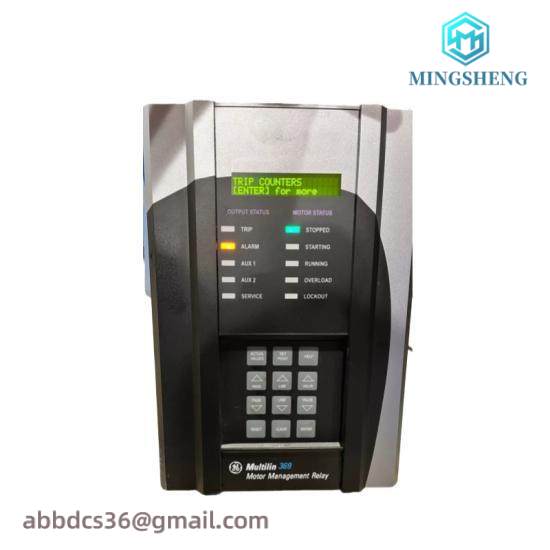

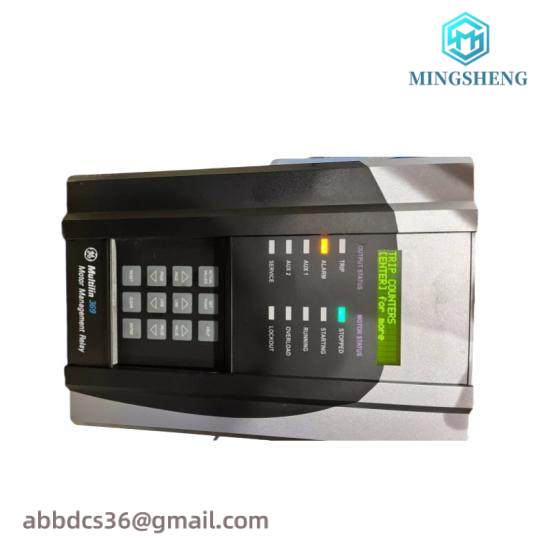

The GE 369-HI-R-M-0-0-0 is a cutting-edge motor management relay designed to enhance the performance and reliability of medium-sized motors and their associated equipment. It integrates waveform capture, event reporting, data logging, and optional metering capabilities, providing real-time insights into motor health and performance. This model features twelve RTD inputs, enabling precise temperature monitoring for enhanced protection. Its compact design ensures easy installation in various industrial settings, while its robust construction and advanced insulation class make it suitable for demanding environments. With its ability to capture detailed waveforms and generate event reports, the 369-HI-R-M-0-0-0 reduces downtime by quickly identifying and addressing potential issues. The built-in metering package offers accurate measurements, helping users make informed decisions about motor maintenance and operation. Overall, the GE 369-HI-R-M-0-0-0 is a reliable and versatile solution for motor management, ensuring optimal performance and reduced operational costs.
