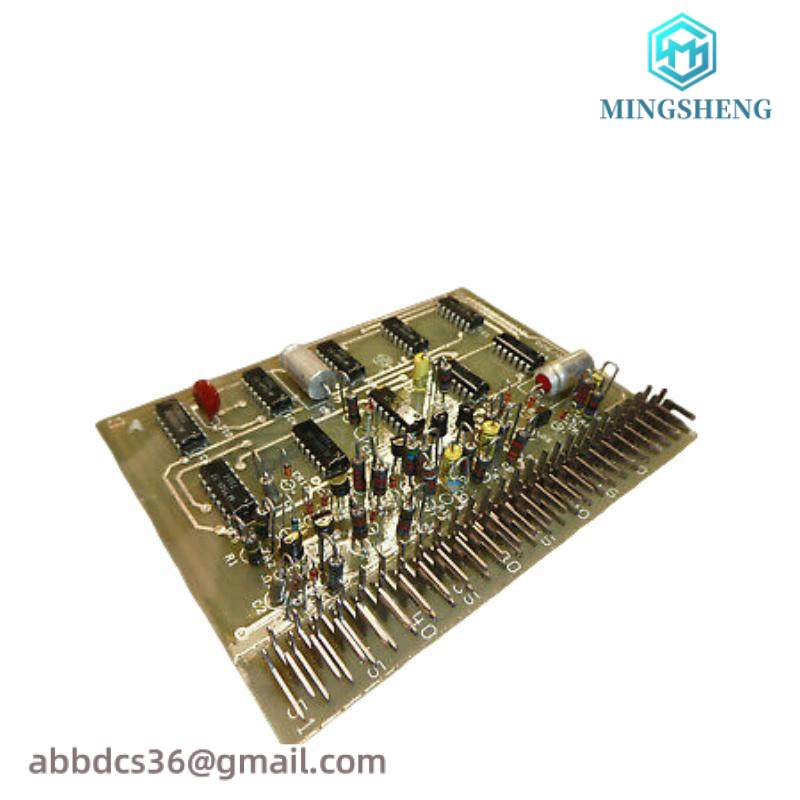

GE IC3600VANB1D: FANUC ANNUNCIATOR CARD, for Mark I/II Series, Engineered for Scalability & Durability

Type:Annunciator Control Board

Manufacturer:General Electric (GE)

Model:IC3600VANB1D

Compatible Systems:Mark I or Mark II Speedtronic series

Application:Steam and gas turbine systems

Supported Power Range:From small single stations to complete power plants (up to 400 MW)

Technology:Integrated circuit board with microprocessors, relays, switches, and indicators

Power Supply:DC voltage

Dimensions:L x W x H (mm): 178 x 105 x 30

Weight:Approximately 0.5 kg

Certifications:UL, CE

Environment:Industrial, harsh conditions

Operating Temperature:-20°C to +50°C

Storage Temperature:-30°C to +70°C

    The GE IC3600VANB1D is a testament to GE‘s commitment to engineering reliability and scalability in turbine management systems. It is specifically designed for the Mark I and Mark II Speedtronic series, providing critical control functions for steam and gas turbines.

    Equipped with high-quality components including aluminum electrolytic capacitors, metal film resistors, and diodes, this board ensures stable and efficient operation under various environmental conditions typically found in industrial settings.

    With its vertical mounting of most components and clear designations, the IC3600VANB1D is not only functional but also user-friendly, facilitating ease of installation and maintenance.

    Despite being considered technologically obsolete by some standards, the IC3600VANB1D continues to serve as a reliable solution for power generation facilities that have invested in these systems. Its legacy speaks to the enduring quality and adaptability of GE‘s early turbine management solutions.

    For optimal performance and safety, it is recommended to consult the retained manuals or data sheets for detailed installation and operational guidelines.
