Manufacturer:General Electric
Series:EX2100 Excitation Control
Part Number:IS200DSPXH1DBC
Functional Description:Singular central control module running on Windows software with a 60 MHz digital signal processor and an additional ASIC.
PCB Coating:Conformal Coating
Functional Revision:Revision 1D and 2B
Artwork Revision:C
Instruction Manual:GEI-100488
Weight:N/A
Dimensions:N/A

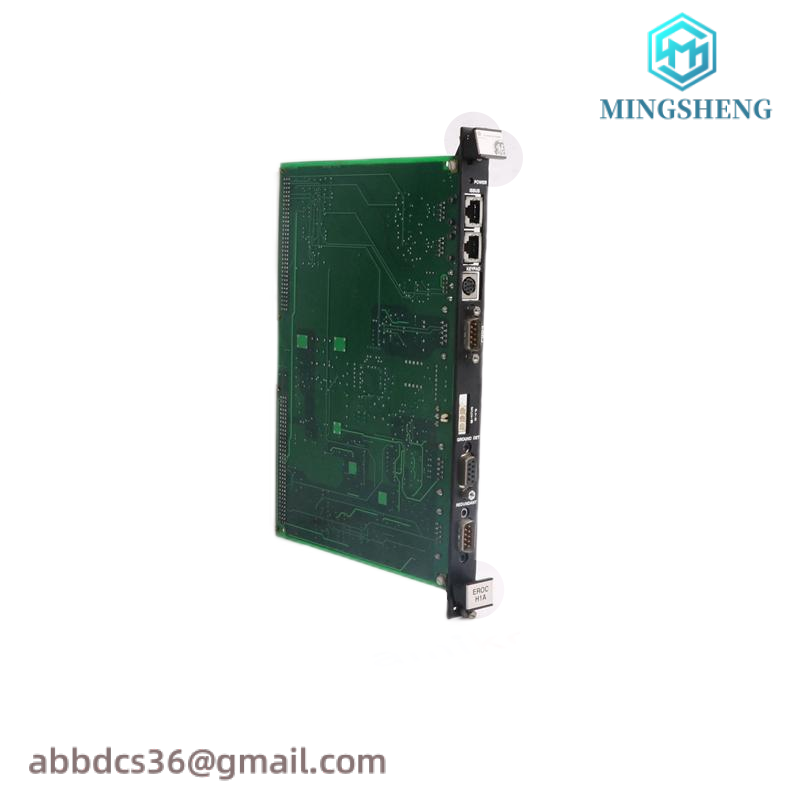

The GE IS200DSPXH1DBC is a specialized digital signal processor control board designed to meet the stringent demands of modern industrial automation environments. This board is a critical component of the EX2100 series, providing precise control over motor operations and excitation systems.
With its robust design and advanced digital signal processing capabilities, the IS200DSPXH1DBC ensures efficient and accurate performance in various industrial processes. It features a high-speed 60 MHz digital signal processor, enhancing computational speed and processing capacity.
The conformal coating on the printed circuit board (PCB) provides protection against harsh environmental conditions, ensuring reliable operation in diverse industrial settings. The inclusion of an application-specific integrated circuit (ASIC) further optimizes functionality, offering specialized processing for enhanced system performance.
Designed for easy integration into existing GE industrial systems, this control board supports seamless communication with other components, facilitating streamlined system management. The revision history ensures that users benefit from continuous improvements and bug fixes, guaranteeing optimal performance throughout its lifecycle.
Equipped with comprehensive documentation, including the GEI-100488 instruction manual, the IS200DSPXH1DBC ensures that users can quickly understand and effectively utilize the board’s features. Its compact size and lightweight design make it ideal for space-constrained environments, without compromising on performance.
