Product Type:Network Interface Module
Product ID:MVI56-MNET
Extended Features:Supports up to 30 clients and 20 servers
Response Time:Faster response for multi-server applications
Communication Impact:Minimizes impact to other server communications when one server device goes offline
Server Capability:Provides access for Human Machine Interfaces (HMIs), Supervisory Control and Data Acquisition (SCADA), or Distributed Control Systems (DCS)
Integrated Software:RSLogix™ 5000 compatible using AOI or ladder file integration
No Additional Programming Required:No extra PAC/PLC programming needed
Configuration:Easy IP address configuration for simple setup
Backward Compatibility:Backwards compatible with previous versions
Ethernet Configuration:10/100 Mbps auto crossover detection
Application Port:User-definable module data memory mapping up to 5000, 16-bit registers
CIPconnect Support:CIPconnect-enabled network configuration and diagnostics monitoring
Reduced I/O Image Size:Optimized for remote rack implementations
Configuration Builder Software:ProSoft Configuration Builder (PCB) software for streamlined setup

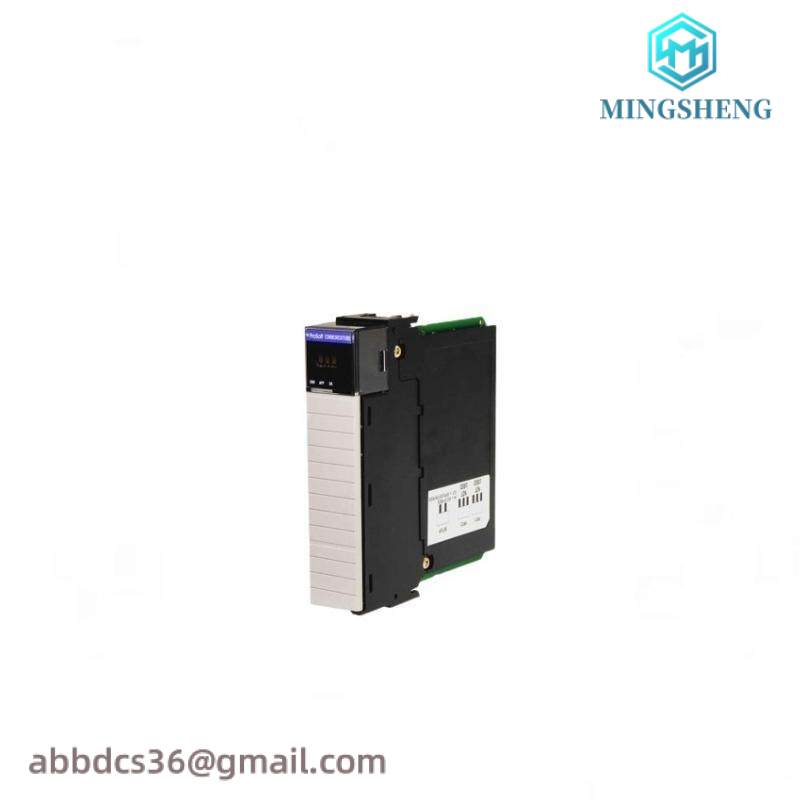

Prosoft’s MVI56-MNET Network Interface Module is an advanced solution for integrating ControlLogix systems with Ethernet networks. Designed with backward compatibility, it seamlessly connects with previous MVI56-MNETR versions, ensuring a smooth transition for existing users.
With its single-slot ControlLogix backplane compatibility, the module efficiently supports high-speed Ethernet configurations and application ports, providing users with a versatile and powerful networking solution.
Featuring 10/100 Mbps auto crossover detection, the MVI56-MNET ensures reliable data transmission, minimizing errors and enhancing network stability. Its user-definable module data memory mapping of up to 5000, 16-bit registers offers extensive customization options, allowing for tailored system integration.
CIPconnect-enabled, the module facilitates network configuration and diagnostics monitoring using ControlLogix 1756-ENxT and 1756-CNB modules, enabling real-time system management and maintenance. This feature significantly reduces downtime and improves overall operational efficiency.
Additionally, the MVI56-MNET is optimized for remote rack implementations, featuring a reduced I/O image size that streamlines resource allocation and enhances scalability. The ProSoft Configuration Builder (PCB) software further simplifies setup and configuration processes, ensuring a hassle-free installation experience.
