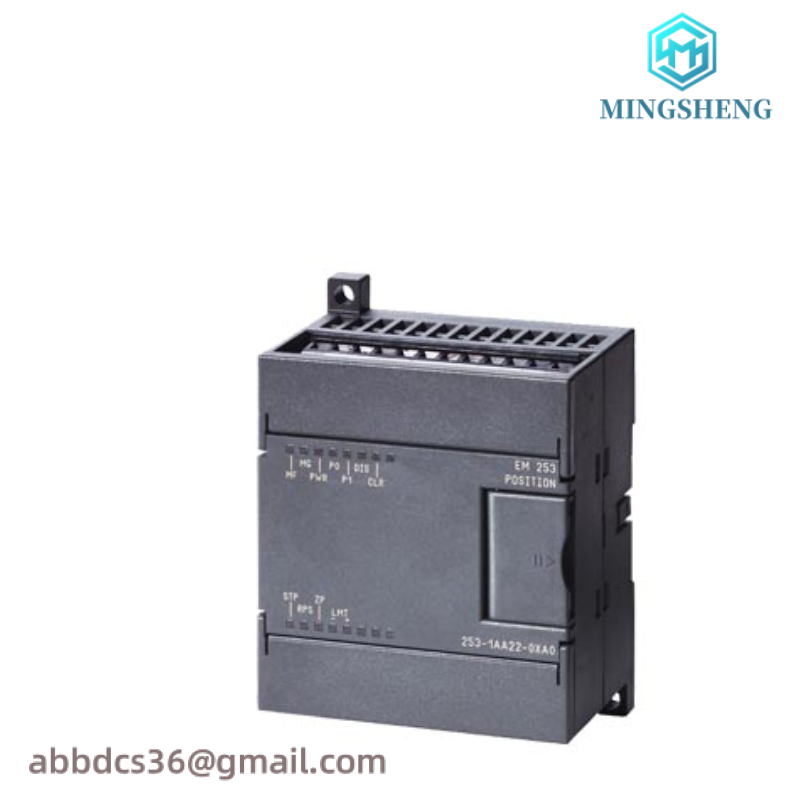

SIEMENS SIMATIC S7-200 EM253 Positioning Expansion Module

Model Type:Positioning Expansion Module

Model Number:6ES7253-1AA22-0XA0

Manufacturer(s):SIEMENS

Net Weight (kg):0.18

Packaging Dimension:8.80 x 9.50 x 6.90 cm

Additional Information:Programming via Micro/WIN, compatible with SIMATIC S7-200 series, supports open-loop control of stepper motors or servo drives.

    The SIEMENS SIMATIC S7-200 EM253 positioning module is an essential component for enhancing the precision and efficiency of industrial automation systems. This module, with its 200 kHz operating frequency, is specifically tailored for the accurate control of stepper motors or servo drives, making it ideal for applications where high-speed, precise motion control is critical.

    Featuring a compact design and lightweight construction, the EM253 is highly portable and can easily integrate into existing industrial setups without compromising on performance. Its compatibility with Micro/WIN programming software ensures seamless integration with the SIMATIC S7-200 series controllers, allowing for intuitive setup and configuration.

    This positioning module is equipped with robust built-in functions that enhance its reliability and ease of use. The inclusion of an EMI filter ensures stable operation even in environments with high electromagnetic interference. Additionally, the EM253 supports multiple fieldbus protocols such as DeviceNet, Profibus, LonWorks, and CANopen, providing flexibility in network connectivity and compatibility with various industry standards.

    For enhanced operational efficiency, the EM253 positioning module is designed with an RFI-switch for mains, ensuring reliable power supply even under fluctuating electrical conditions. The easy DC BUS sharing feature further optimizes energy consumption by allowing efficient distribution of power among connected devices.

    With its comprehensive protection measures, the SIEMENS SIMATIC S7-200 EM253 positioning module ensures safe and uninterrupted operation. It is rated for a nominal input voltage of 208;240 Volts AC and can handle up to 4.2 Amps at maximum frequency of 600 Hz, providing a robust foundation for precise motor control applications.
